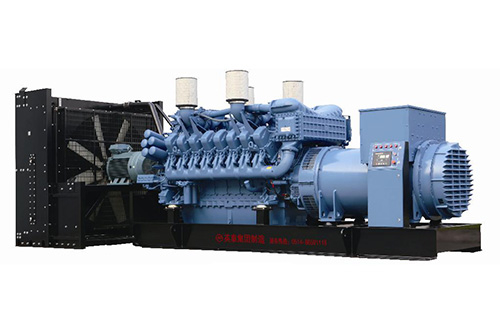

MTU generator set

Quantity:

1. Overview of MTU generator set

The MTU series engine is one of the few diesel engines in the world equipped with the electronic monitoring and management system MDEC. The 4000 series is a large diesel engine in the world that applies common rail fuel injection system technology. ADEC collects and inspects the main parameters of the engine during operation, so that the fuel is in Complete combustion is achieved in the cylinder, realizing electronic injection in the true sense. To ensure that the MTU engine has an ideal fuel consumption rate, lower start and sudden load smoke, and better cold start performance. Fuel-saving and environmental protection performance is currently outstanding in the world, and the overhaul period is as long as 30,000 hours, which is far more than that of ordinary diesel engines by 10,000 to 20,000 hours. MDEC also has fault diagnosis and fault code display functions. MTU2000 and 4000 series engine structure: water-cooled, turbocharged exhaust gas, four-stroke, V-shaped cylinder with a 90-degree angle, 2000 series air intake is mainly air-to-air intercooled, 4000 series water-to-air intercooled. The emissions of MTU2000 and 4000 series engines meet the environmental protection standards of the Luftwaffe TA Luft, the California Air Resources Board CARB, the US Environmental Protection Agency EPA and the European Union II. The generator set can be selected from Intech YTW series generator or STAMFORD generator. The generator set has the characteristics of abundant power, operational reliability and good economy.


2. Specifications

MTU series diesel generator sets
Genset
Genset ModelPower(KW)Power(KW)Power(A)Power(A)
Weight(kg)

Overall Dimensions L*W*H(m)BrandEngine Type
KWKVAKWKVA
220GF22027524230339643627602.9*1.0*2.0MTU 1600 series6R1600G10F
250GF25031327534445049528002.9*1.0*2.06R1600G20F
293GF29336632540652758532503.05*1.35*2.08V1600G10F
320GF32040036045057664832703.05*1.35*2.08V1600G20F
370GF37046340750966673341203.23*1.25*2.1410V1600G10F
400GF40050045056372081042203.23*1.25*2.1410V1600G20F
480GF48060052866086495047403.23*1.25*2.1412V1600G10F
524GF524655583729943104949003.31*1.25*2.1412V1600G20F
500GF500625567709900102170003.9*1.42*2.2MTU 2000 series12V2000G25
500GF50062555068890099070003.9*1.42*2.212V2000G45
640GF6408007048801152126771003.9*1.42*2.212V2000G65
720GF72090080010001296144073003.9*1.42*2.212V2000G85
720GF72090080010001296144077004.5*1.6*2.416V2000G25
800GF800100088011001440158480004.6*1.8*2.416V2000G45
800GF800100088011001440158480004.6*1.8*2.416V2000G65
900GF9001125100012501620180080004.6*1.8*2.416V2000G85
900GF9001125100012501620180082004.95*1.85*2.418V2000G85
910GF9101138100012501638180082004.95*1.85*2.418V2000G65
1000GF10001250110013751800198082004.95*1.85*2.418V2000G26F
1100GF110013751200150019802160132005.35*2.2*2.55MTU 4000 series12V4000G23R
1450/1300GF130016251452181523402614132005.35*2.2*2.5512V4000G23
1620/1460GF146018251617202126282911135005.35*2.2*2.5512V4000G63
1800/1650GF165020631837229629703307155006.1*2.2*2.5816V4000G23
2000/1800GF180022502013251632403623165006.1*2.2*2.5816V4000G63
2200/2000GF200025002240280036004032184006.41*2.6*3.020V4000G23
2420/2200GF220027502475309439604455186006.41*2.6*3.020V4000G63
2640/2400GF240030002640330043204752186006.41*2.6*3.020V4000G63L




19





Engine

Power(KW)

Power(KW)


No Of Cylinders
Bore/Strokse (MM)Exhaust Cspacity (L)Compression RatioLubricating Capacity (L)Fuel Consumptio (G/KW.H)FuelConsumptio
(L/h)
Type Of GovernorLiquid coolind capacity
(L)
Emission leveis
2502886/L122*1501117.5:14320152Electronically controlled common rail89EPA level 2
2803226/L122*1501117.5:14319961.5Electronically controlled common rail89EPA level 2
3303808/V122*1501417.5:14619180.3Electronically controlled common rail84EPA level 2
3604148/V122*1501417.5:14619181.2Electronically controlled common rail84EPA level 2
42048310/V122*1501817.5:16119191.4Electronically controlled common rail94EPA level 2
45051810/V122*1501817.5:16119099.2Electronically controlled common rail94EPA level 2
53061012/V122*1502117.5:173195122.7Electronically controlled common rail99EPA level 2
59067912/V122*1502117.5:173195182.7Electronically controlled common rail99EPA level 2
58063512/V130*1502416.0:177197130.1Electronically controlled common rail99EPA level 2
71078012/V130*1502416.0:177202182.7Electronically controlled common rail176EPA level 2
71078012/V130*1502415.2:177200185.0Electronically controlled common rail200EPA level 2
81089012/V130*1502415.2:177200187.0Electronically controlled common rail200EPA level 2
81089016/V130*1503216.0:177200188.9Electronically controlled common rail223EPA level 2
915101016/V130*1503215.2:1102198198.0Electronically controlled common rail223EPA level 2
89097516/V130*1503215.2:1102198207.3Electronically controlled common rail223EPA level 2
1010111516/V130*1503215.2:1102198228.3Electronically controlled common rail223EPA level 2
1191131018/V130*1503615.2:1130202240.0Electronically controlled common rail232EPA level 2
1000110018/V130*1503615.2:1130200258.3Electronically controlled common rail222EPA level 2
1102123518/V130*1503615.2:1202130283.0Electronically controlled common rail222EPA level 2
1205130012/V170*2105716.4:1260195336.1Electronically controlled common rail467EPA level 2
1420157512/V170*2105716.4:1260189348.9Electronically controlled common rail467EPA level 2
1575175012/V170*2105716.4:1300192401.2Electronically controlled common rail470EPA level 2
1798196516/V170*2107616.4:1260192444.0Electronically controlled common rail508EPA level 2
1965218516/V170*2107616.4:1300191501.2Electronically controlled common rail512EPA level 2
2200249020/V170*2109516.4:1390190528.9Electronically controlled common rail588EPA level 2
2420267020/V170*2109516.4:1390193603.1Electronically controlled common rail611EPA level 2
2590285020/V170*2109516.4:1390192637.8Electronically controlled common rail611EPA level 2




20
