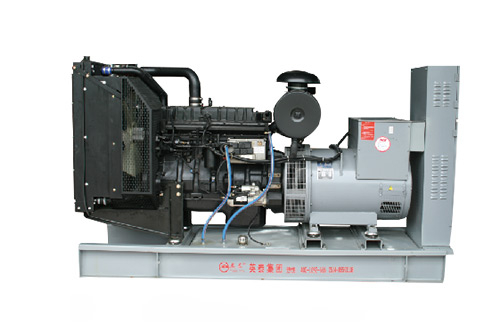

Perkins generator set

Quantity:

1. Overview of Perkins generator set

Intech/Perkins (Perkins) series diesel generator sets are our company's imported original products for many years, with complete power grades and good sales. The power section of this section (7KW-1800KW) covers a wide range. Our company selects the world brand Perkins from 3 cylinder to 16 cylinder series engine to match the Inteck brand generator (Patent name: a kind of enhanced BLDCM, patent No.: ZL 20162264675.5; patent name: a parallel hybrid excitation BLDC motor, patent No.: ZL 2012 10329653.5; patent name: a parallel hybrid excitation BLDC fault tolerant motor, patent No.: ZL 2012 10329652.0), which has low emissions, low noise, low fuel consumption, long overhaul period, and new international and domestic services. Global UNPROFOR has cast the Intech brand—a complete set of Intech/(Perkins Perkins) engines, which can be used in high-altitude environments and are favored by users. Our company is the larger OEM supporting unit of Perkins Engine Company.


2. Perkins generator set (diesel generator set) performance
1. Electrical performance of Perkins generator set:
Comply with GB2820 and ISO8528/3 standards. And it meets the technical requirements of YD/T502 special diesel generator set for post and telecommunication system.
Rated voltage: 400/230V
Wiring mode: 3-phase 4-wire
Frequency: 50Hz
Rated power factor: 0.8 (lagging)
Suppress radio interference: comply with VDE0875-N level and GB2820 regulations


2. Perkins generator set standard:
Comply with GB/T2819, ISO8528, IEC34 and other international standards;
The rated output power of the generator set complies with;
The altitude does not exceed 1000 meters;
Ambient temperature 0℃~40℃;
Relative air humidity 60%;


3. Perkins generator set alternator:
Excitation mode: brushless self-excitation
Insulation class: H class
Protection level: IP21~IP23
Voltage regulation: automatic regulation


4. Perkins generator set control box:
There are different types of control boxes such as manual, automatic, remote monitoring, automatic and intelligent. The basic configuration includes voltmeter, ammeter, water temperature meter, oil pressure meter, controller, emergency stop button, preheat button, battery voltmeter, timetable, phase selection switch, etc.


Three, principle
In the cylinder of the diesel engine, the clean air filtered by the air filter is fully mixed with the high-pressure atomized diesel sprayed from the fuel injector. Under the upward extrusion of the piston, the volume is reduced and the temperature rises rapidly, reaching the ignition point of diesel. The diesel is ignited, the mixed gas burns violently, and its volume expands rapidly, pushing the piston down, which is called ‘work’. Each cylinder performs work in a certain order, and the thrust acting on the piston becomes the force that pushes the crankshaft to rotate through the connecting rod, thereby driving the crankshaft to rotate. Install the brushless synchronous alternator coaxially with the crankshaft of the diesel engine, and then the rotation of the diesel engine can drive the rotor of the generator. Using the principle of'electromagnetic induction', the generator will output induced electromotive force, and current can be generated through the closed load circuit. .


Four, specifications

Perkins series diesel generator sets
Genset
Genset ModelMain power (main use)Standby power (standby)Current (main use)
Power(A)
Current (standby)
Power(A)
Net Weight (kg)Dimensions L*W*H(m)Brand
KWKVAKWKVA
4.5GF4.55.64.96.48.18.822501.05* 0.44* 0.95Perkins
7GF78.757.79.62512.613.863291.32* 0.552* 1.18
10GF101311151819.83871.32* 0.552* 1.18
12GF12151316.2521.623.41.32* 0.552* 1.18
16GF16201822.528.832.44001.32* 0.552* 1.18
22GF2227243039.643.24501.35* 0.59* 1.18
24GF24302632.543.246.88271.54*0.97*1.36
36GF3645405064.8729171.93*1.12*1.36
48GF48605366.2586.495.49671.93*1.12*1.36
52GF52655771.2593.6102.611071.93*1.12*1.36
64GF64807087.5115.212612071.93*1.12*1.36
64GF64807087.5115.212612071.93*1.12*1.36
80GF8010088110144158.414002.09*1.12*1.37
108GF108135120150194.421615802.5*1.12*1.47
120GF120150132165216237.616022.5*1.12*1.47
144GF144180160200259.228816302.5*1.12*1.47
160GF160200176220288316.816502.5*1.12*1.47
160GF160200176220288316.816952.8*0.9*1.69
184GF184230200250331.236017952.87*0.9*1.69
200GF20025022027536039618952.87*0.9*1.69
220GF22027524030039643219082.9*0.9*1.69
240GF240300264330432475.221003.0*0.9*1.69
280GF28035032040050457627753.4*1.13*2.02
320GF32040036045057664829253.4*1.13*2.02
364GF364455400500655.272034503.76*1.13*2.06
400GF40050044055072079235703.76*1.13*2.06
480GF480600528660864950.439753.76*1.54*2.13
520GF520650560700936100840753.76*1.54*2.13
600GF6007506608251080118863594.28*1.91*2.28
640GF64080070488011521267.24.28*1.91*2.28
720GF72090080010001296144069204.94*2.04*2.45
720GF7209008001000129614404.94*2.04*2.45
808GF808101090011251454.416204.94*2.04*2.45
818GF8181022.588011001472.415844.94*2.04*2.45
900GF9001125100012501620180070004.94*2.04*2.45
1000GF100012501108138518001994.490594.92*1.9*2.42
1000GF10001250110013751800198091004.92*1.9*2.42
1080GF108013501188148519442138.491594.92*1.9*2.42
1100GF11001375120015001980216097205.1*1.9*2.44
1200GF1200150013201650216023765.1*1.9*2.44
1368GF13681710150018752462.42700108905.22*2.21*2.49
1480G148018501600200026642880155005.73*2.3*3.02
1480G1480185016002000266428805.73*2.3*3.02
1600GF1600200018002250288032405.73*2.3*3.02
1600GF1600200018002250288032405.73*2.3*3.02
1800GF1800225020002500324036005.73*2.3*3.02






1


Engine
Engine Type

Rate (main)

Power

(KW)

power

(spare)

Power

(KW)

No Of Cylin

ders

Bore

/Strokse (MM)

Displacement

Exha

ust Cspa

city(L)

Comp

ression Ratio

Lubri

cating Cap

acity (L)

Fuel Consu

mptio (G

/KW.H)

Fuel Cons

umptio

(L/H)

Of Go

vernor

Liquid coolind capacityEmission leveis
403D-075.45.9367x720.76123.5:13.05≤2521.63


403A-11G189377x811.1323.0:14.9≤2522.42mechanical5.2
403A-15G11213384x901.49622.5:14.9≤2523.62mechanical6
403A-15G21415384x901.523.0:16≤2524.23mechanical6
404A-22G11820484x1002.223.0:110.6≤2465.3mechanical7T3
404D-22TG2527484x1002.21623.3:110.6≤2467.1mechanical9.3
1103A-33G28303105x1273.317.5:17.9≤2207.4Machine/electricity10.2
1103A-33TG142463105x1273.317.5:17.9≤2207.2Machine/electricity10.2
1103A-33TG254593105x1273.317.5:17.9≤22014.6Machine/electricity10.2
1104A-44TG158644105x1274.417.5:18≤20814.3mechanical13
1104A-44TG272794105x1274.417.5:18≤20518.7mechanical13
1104C-44TAG14105x1274.417.5:18≤20518.6electronic13T3
1104C-44TAG2901004105x1274.417.5:18≤20522.6electronic13T3
1106A-70TG1
1191326105x135618.2:116.5≤20529.2electronic21
1106A-70TAG21301446105x135618.2:116.5≤20732.3mechanical21
1106A-70TAG31581756105x135616.0:116.5≤20741.4electronic21
1106A-70TAG41741916105x135616.0:116.5≤20745.8electronic21
1506A-E88TAG11801986166.6x135.98.716.9:129.6≤20644.6EFI41
1506A-E88TAG22012236166.6x135.98.716.9:126.4≤20648.6EFI41
1506A-E88TAG32232456166.6x135.98.716.9:126.4≤20655.5EFI41
1506A-E88TAG42452686166.6x1469.317.2:129.6≤20060.2EFI41
1506A-E88TAG52632936166.6x1469.317.2:133.2≤19864.9EFI41
2206C-E13TAG23053496130x15712.516.3:140≤20875EFI51
2206C-E13TAG33493926130x15712.516.3:140≤20885EFI51
2506C-E15TAG13964356135x16715.216.0:162≤20999EFI58
2506C-E15TAG24354786135x16715.216.0:162≤209106EFI58
2806C-E18TAG1A5255746145x18318.114.5:162≤203129EFI61
2806A-E18TAG25656096145x18318.114.5:162≤203123EFI61
4006-23TAG2A6326956160x19022.913.6:155.5≤209126electronic105
4006-23TAG3A6797606160x19022.913.6:1123≤208137electronic105
4008TAG1A7678448160x19030.613.6:1153≤203143electronic162
4008-30TAG17588428160x19030.613.0:1153≤197156electronic140
4008-30TAG28519478160x19030.613.0:1153≤202170electronic140
4008TAG2A8618160x19030.613.6:1153≤205175electronic149
4008-30TAG394710558160x19030.613.0:1153≤208206electronic140
4012-46TWG2A1055116612160x19045.813.0:1159≤200207electronic196
4012-46TAG0A1053115812160x19045.813.0:1159≤200207electronic196
4012-46TWG3A1207132112160x19045.813.0:1177≤202224electronic196
4012-46TAG1A1149126312160x19045.813.0:1177≤196221electronic210
4012-46TAG2A1267139512160x19045.813.0:1177≤200248electronic210
4012-46TAG3A1400158312160x19045.813.0:1177≤207303electronic210
4016TAG1A1537169016160x19061.113.0:1238≤199297electronic316
4016-61TRG11558168416160x19061.113.0:1238≤209337electronic316
4016TAG2A1715188616160x19061.113.0:1238≤205341electronic316
4016-61TRG21684189516160x19061.113.0:1238≤209347electronic316
4016-61TRG31875208316160x19061.113.0:1238≤208385electronic326






2
