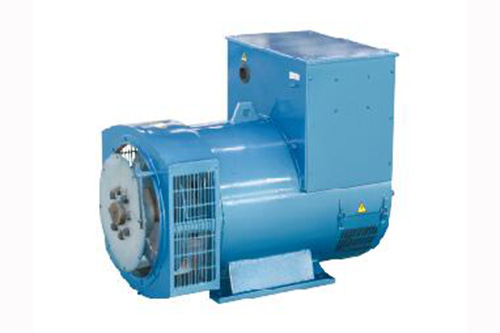

ST/STC brush generator

Availability:
Quantity:
Inquire Add to Basket

1. Overview of ST/STC brushed generators

The company has produced ST (single-phase) and STC (three-phase) generators for nearly 40 years, with an annual output of about 10,000 generators, with mature technology and superior performance.

Generator feature description:

1. Steel shell structure.

2. Third harmonic excitation.

3. Strong ability to start asynchronous machine.

4. Can adapt to harsh environments.

5. Superior cost performance.


2. Specifications

model Capacity KVA Power KW Voltage V Current A Phase Frequency HZ Protection grade IP Insulation class Pressure regulation rate%
STC5 6.25 5 400 9 3 50 21 B 5
STC7.5 9.375 7.5 400 13.5 3 50 21 B 5
STC10 12.5 10 400 18 3 50 21 B 5
STC12 15 12 400 21.6 3 50 21 B 5
STC15 18.75 15 400 27 3 50 21 B 5
STC20 25 20 400 36 3 50 21 B 3
STC24 30 24 400 43.2 3 50 21 B 3
STC30 37.5 30 400 54 3 50 21 B 3
STC40 50 40 400 72 3 50 21 B 3
STC50 62.5 50 400 90 3 50 21 B 2
STC64 80 64 400 115.2 3 50 21 B 2
STC75 93.75 75 400 136 3 50 21 B 2
STC90 112.5 90 400 162 3 50 21 B 2
STC100 125 100 400 180 3 50 21 B 2
STC120 150 120 230 216 1 50 21 B 5
ST-5 5 5 230 21.7 1 50 21 B 5
ST-10 10 10 230 43.5 1 50 21 B 5
ST-12 12 12 230 52.2 1 50 21 B 5
ST-24 24 24 230 104.4 1 50 21 B 5

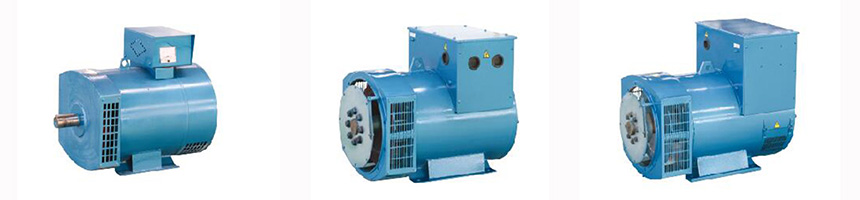

Brushed generator
