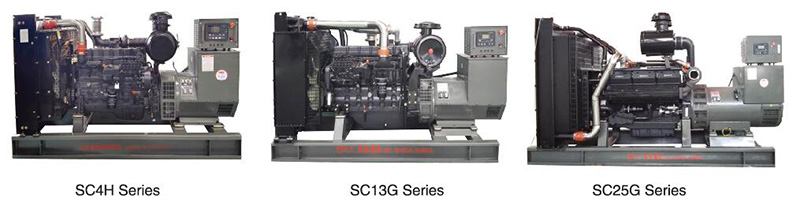

Shangchai generator set

Quantity:

1. Overview of Shangchai generator sets

Shanghai Diesel Engine Co., Ltd. (Shanghai Diesel Engine Co., Ltd.) old brand 135 series diesel engines are the diesel engines that our company has sold more in small and medium power units for many years. This product uses Shangchai's 135 and G128 series diesel engines (Chinese brand products) to support YINGTAI joint venture brand generators (Patent name: a kind of enhanced BLDCM, patent No.: ZL 20162264675.5; patent name: a parallel hybrid excitation BLDC motor, patent No.: ZL 2012 10329653.5; patent name: a parallel hybrid excitation BLDC fault tolerant motor, patent No.: ZL 2012 10329652.0), with excellent power, economy, stability, reliability, and operability And low operation and maintenance costs are the fundamental reasons for the best-selling of small and medium power units (Intech brand). At the same time, in addition to the complete nationwide warranty of Intech/Shanghai Diesel Co., Ltd., and sufficient spare parts supply at various outlets, it has been long Has been favored by customers. Our company is one of the OEM customers of diesel engines for Shanghai Diesel Power Plant.


2. Advantages
1. Adopt the \"Dongfeng\" diesel engine of Shanghai Diesel Engine Co., Ltd. as power.
2. It is suitable for Marathon (Sino-US joint venture), Stamford (British wholly-owned), French Leroy Somer and other brand generators and control panels.
3. Flexible configuration, good stability, can meet different requirements of users.
4. Good power performance, large torque reserve, low fuel consumption rate and engine oil consumption rate.
5. Diesel engine automatic protection device can be optional, and it can be connected in parallel and grid-connected. If required, it can also be made into an emergency automatic unit, using a soundproof cover to change it into a low-noise unit.


3. Features
1. Integral crankshaft, gantry body, flat-cut connecting rod, short piston, compact and reasonable appearance, strong matching adaptability, can be interchanged with the old 135 diesel engine;
2. Adopt a new type of necked combustion chamber to increase the fuel injection pressure, improve the combustion process, and meet the environmental protection indicators: the exhaust pollutant emission value meets the requirements of JB8891-1999, and the noise meets the requirements of GB14097-1999 with a margin;
3. Optimized design of lubrication and cooling system, reduce the number of external pipelines and parts, and use the integral brushless alternator to greatly improve the three leakage and greatly enhance the reliability.
4. It is matched with J98 and J114b exhaust gas turbochargers, which has strong plateau working ability. When used in plateau areas with an altitude of 5000m, the power drop is less than 3%;
5. Adopting a new type of high-vacuum exhaust ejection device, three-stage swirling German paper filter air filter, low-temperature ceramic infiltration piston ring and other measures. Diesel engines are used in deserts or high-dust areas without early wear. .


Four, specifications

Shangchai/Lingzhong series diesel generator sets
Genset
Genset Model Power (main use) Power (standby) Power(A) Power(A) Net Weight (kg) Dimensions L*W*H(m) Brand
KW KVA KW KVA
55GF 55 68.75 60 75 99 108 1350 1.95*0.75*1.35 Shangchai SDEC
70GF 70 87.5 80 100 126 144 1520 1.95*0.8*1.35
90GF 90 112.5 100 125 162 180 1805 2.0*0.8*1.4
110GF 110 137.5 120 150 198 216 1900 2.1*0.8*1.4
130GF 130 162.5 150 187.5 198 270 2005 2.35*0.86*1.55
140GF 140 175 150 187.5 252 270 2005 2.4*0.86*1.55
150GF 150 187.5 165 206.25 270 297 2100 2.4*0.86*1.55
160GF 160 200 180 225 288 324 2200 2.55*0.95*1.65
180GF 180 225 200 250 324 360 2250 2.6*0.95*1.65
180GF 180 225 200 250 324 360 2300 2.8*1.23*1.85
200GF 200 250 220 275 360 396 2300 2.8*1.23*1.85
200GF 200 250 220 275 360 396 2300 2.6*0.95*1.7
220GF 220 275 250 312.5 396 450 2388 3.1*1.23*1.85
250GF 250 312.5 300 375 450 540 2415 3.1*1.23*1.85
280GF 280 350 300 375 504 540 3370 3.1*1.1*1.65
320GF 320 400 350 437.5 576 630 3450 3.2*1.23*1.85
320GF 320 400 350 437.5 576 630 3650 3.2*1.1*1.65
360GF 360 450 400 500 648 720 3675 3.5*1.4*2.15
400GF 400 500 450 562.5 720 810 3675 3.6*1.4*2.15
450GF 450 562.5 500 625 810 900 4005 3.6*1.4*2.15
500GF 500 625 550 687.5 900 990 4500 3.6*1.4*2.15
550GF 550 687.5 600 750 990 1080 4500 3.6*1.4*2.15
600GF 600 750 660 825 1080 1188 4600 4.1*1.58*2.1
750GF 750 937.5 800 1000 1350 1440 4800 4.1*1.58*2.1
55GF 55 68.75 60 75 99 108 1150 2.0*0.8*1.35
80GF 80 100 90 112.5 144 162 1200 2.05*0.8*1.35
90GF 100 125 90 112.5 180 162 1250 2.0*0.8*1.35
110GF 110 137.5 120 150 198 216 1300 2.05*0.8*1.35
120GF 120 150 132 165 216 237.6 1750 2.35*0.87*1.5
160GF 160 200 180 225 288 324 1800 2.45*0.87*1.5
200GF 200 250 220 275 360 396 2100 2.6*0.95*1.7
220GF 220 275 230 287.5 396 414 2100 2.6*0.95*1.7
250GF 250 312.5 300 375 450 540 2800 3.1*1.16*1.8
300GF 300 375 330 412.5 540 594 2900 3.2*1.16*1.8
20GF 20 25 22 27.5 36 39.6 750 1.4*0.55*1.1
24GF 24 30 26.4 33 43.2 47.5 770 1.4*0.55*1.1
30GF 30 37.5 33 41.5 54 59.4 980 1.5*0.6*1.15
40GF 40 50 44 55 72 79.2 1020 1.6*0.78*1.2
500GF 500 625 550 687.5 900 990 5500 3.9*1.6*2.1 Shanghai Lingzhong SME
600GF 600 750 660 825 1080 1188 5800 4.0*1.6*2.1
1000GF 1000 1250 1100 1375 1800 1980 11000 4.9*2.2*2.55
1100GF 1100 1375 1210 1512.5 1980 2178 11500 5.0*2.2*2.55
1200GF 1200 1500 1300 1625 2160 2340 12000 5.0*2.2*2.55
1300GF 1300 1625 1430 1787.5 2340 2574 12500 5.4*2.2*2.8
1500GF 1500 1875 1600 2000 2700 2880 13000 5.6*2.2*2.8
1600GF 1600 2000 1800 2250 2880 3240 13500 5.7*2.2*2.8
1800GF 1800 2250 1980 3364 3240 3564 16000 6.3*2.66*3.25





17



Engine

Engine

Type

Power

(KW)

Power

(KW)

No

Of Cylin

ders

Bore

/Strokse (MM)

Displacement

Exhau

st Cspa

city(L)

Compre

ssion Ratio


cating Capacity

(L)


Fuel Consu

mptio (G/

KW.H)

Fuel Consum

ptio

(L/H)

Speed mode

Type

Of Gover

nor

coolind capa

city

Emiss

ion leveis

SC4H95D2 62 68 4 105x124 4.3 17.3:1 13 200 14.8 Mechanical / ESC 14 Country II
SC4H115D2 78 86 4 105x124 4.3 17.3:1 13 200 18.7 Mechanical / ESC 14 Country II
SC4H160D2 105 116 4 105x124 4.3 16:1 13 195 24.5 ESC 14 Country II
SC4H180D2 120 132 4 105x124 4.3 16:1 13 195 28 ESC 14 Country II
SC7H220D2 146 160 6 114×135 8.27 18:1 19 200 34.9 ESC 24 Country II
SC7H230D2 154 170 6 105x124 6.44 16:1 17.5 195 35.9 ESC 19.8 Country II
SC7H250D2 168 185 6 105x124 6.44 16:1 17.5 195 39.3 ESC 19.4 Country II
SC8D280D2 185 204 6 114x135 8.27 18:1 19 200 44.3 ESC 24 Country II
SC9D310D2 208 228 6 114x144 8.82 18:1 19 197 49.1 ESC 24 Country II
SC13G280D2 187 206 6 135x150 12.88 15.75:1 41 205 45.9 mechanical 52 Country II
SC13G310D2 206 227 6 135x150 12.88 15.75:1 41 205 50.6 mechanical 52 Country II
SC9D355D2 228 255 6 114x144 8.82 16.5:1 25 195 53.2 ESC 24 Country II
SC13G355D2 236 260 6 135x150 12.88 15.55:1 41 200 56.5 mechanical 51 Country II
SC13G420D2 280 308 6 135x150 12.88 15.55:1 41 200 67.1 mechanical 51 Country II
SC12E460D2 307 338 6 128x153 11.8 17:1 41 195 59.9 ESC 47 Country II
SC15G500D2 330 373 6 135x165 14.16 15.55:1 41 200 79 ESC 51 Country II
SC12E500D3 339 373 6 128x153 11.8 17:1 41 195 79.2 Electric control 27 Country III
SC25G610D2 405 445 12 135x150 25.8 16:1 65 202 98 ESC 95 Country II
SC25G690D2 459 505 12 135x150 25.8 16:1 65 202 111 ESC 95 Country II
SC27G755D2 505 561 12 135x155 26.6 16:1 65 202 122.2 ESC 95 Country II
SC27G830D2 565 610 12 135x155 26.6 16:1 65 202 136.7 ESC 95 Country II
SC27G900D2 600 662 12 135x155 26.6 16:1 65 202 145.2 ESC 95 Country II
SC33W990D2 660 726 6 180x215 32.8 16:1 75 205 162.4 ESC 118 Country II
SC33W1150D2 782 860 6 180x215 32.8 15:1 75 205 191.9 ESC 118 Country II
4HTAA4.3-G32 62 68 4 105x124 4.3 16:1 13 192 14.2 Electric control 14 Country III
4HTAA4.3-G34 95 105 4 105x124 4.3 16:1 13 192 21.8 Electric control 14 Country III
4HTAA4.3-G35 106 117 4 105x124 4.3 16:1 13 192 24.4 Electric control 14 Country III
4HTAA4.3-G36 120 132 4 105x124 4.3 16:1 13 192 27.6 Electric control 14 Country III
6HTAA6.5-G32 140 155 6 105x124 6.5 16:1 17.5 192 31.6 Electric control 19.8 Country III
6HTAA6.5-G34 180 198 6 105x124 6.5 16:1 17.5 192 41.4 Electric control 19.8 Country III
6DTAA8.9-G33 230 253 6 114x144 8.9 16:1 25 192 52.9 Electric control 24 Country III
6DTAA8.9-G34 245 253 6 114x144 8.9 16:1 25 192 56.3 Electric control 24 Country III
6ETAA11.8-G32 280 308 6 128x153 11.8 17:1 41 190 63.7 Electric control 47 Country III
6ETAA11.8-G31 340 380 6 128×153 11.8 17:1 41 190 77.4 Electric control 47 Country III
4RTAA2.8-G31 25 28 4 94x100 2.8 17:1 7 195 5.8 Electric control 9 Country III
4RTAA2.8-G32 29 32 4 94x100 2.8 17:1 7 195 6.8 Electric control 9 Country III
4RTAA2.8-G33 38 42 4 94x100 2.8 17:1 7 195 8.9 Electric control 9 Country III
4RTAA2.8-G34 50 55 4 94x100 2.8 17:1 7 195 11.7 Electric control 9 Country III
S6R2-PTA-C 575 635 6-L 170×
220
29.96 14.1:1 94 195 134.3 electronic 110
S6R2-PTAA-C 645 710 6-L 170×
220
29.96 14.1:1 94 206 159.2 electronic 110
S12R-PTA-C 1080 1190 12-V 170×180
49.03 14.0:1 180 197 269 electronic 300
S12R-PTA2-C 1165 1285 12-V 170×180
49.03 13.5:1 180 197 247.8 electronic 250
S12R-PTAA2-C 1277 1404 12-V 170×180
49.03 13.5:1 180 221 315 electronic 250
S16R-PTA-C 1450 1590 16-V 170×180
65.37 14.0:1 230 214 325 electronic 340
S16R-PTA2-C 1600 1760 16-V 170×180
65.37 13.5:1 230 216 370 electronic 340
S16R-PTAA2-C 1684 1895 16-V 170×180
65.37 14.0:1 230 217 375 electronic 340
S16R-PTAW-C 1960 2167 16-V 178×180
88 14.0:1 260 217 380 electronic 340





18
