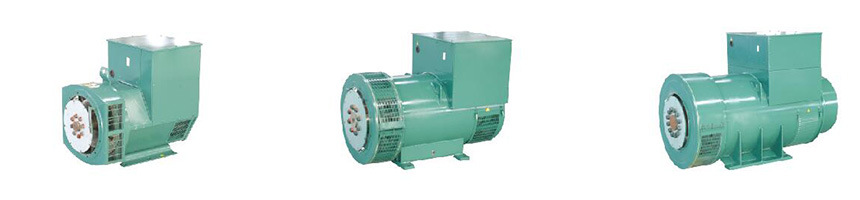

1. Overview of YTW Brushless Generator
This product is produced by introducing advanced foreign technology, leading technology and superior performance. Five patents granted by the State Intellectual Property Office, Jiangsu Science and Technology Department confirmed as provincial high-tech products, included in the Torch Plan. Products have passed ISO9001: 2000 international quality system certification.
Obtain CCS ship inspection certificate from China Classification Society.
Obtain the network access license for telecom products from the Ministry of Information Industry.
It has been tested by the National Quality Inspection Center for Small and Medium-sized Motors to meet relevant standards.
Passed the provincial appraisal and won the Jiangsu Science and Technology Achievement Award.
Quality insurance is undertaken by China Ping An Insurance Company.
Through the transition interface: it can be matched with well-known domestic and foreign brands such as 95, 105, 135, Perkins, Cummins, Doosan, Qianglu, VOLVO, Steyr, Deutz, Benz and other well-known diesel engines.
By the end of 2011, more than 90,000 10-2000KW brushless generators of various specifications have been produced, and the response has been good after users' use.
2. Specifications
| model | Capacity KVA | Power KW | Voltage V | Current A | Phase | Frequency HZ | Protection grade IP | Insulation class | Pressure regulation rate% |
| KTW6.5 | 8.125 | 6.5 | 400 | 11.7 | 3 | 50 | 21 | H | 1 |
| KTW9 | 11.25 | 9 | 400 | 16.2 | 3 | 50 | 21 | H | 1 |
| KTW11 | 13.75 | 11 | 400 | 19.8 | 3 | 50 | 21 | H | 1 |
| KTW13 | 16.25 | 13 | 400 | 23.4 | 3 | 50 | 21 | H | 1 |
| KTW18 | 22.5 | 18 | 400 | 32.4 | 3 | 50 | 21 | H | 1 |
| KTW22 | 31.25 | 22 | 400 | 39.6 | 3 | 50 | 21 | H | 1 |
| KTW25 | 37.5 | 25 | 400 | 45 | 3 | 50 | 21 | H | 1 |
| KTW30 | 42.5 | 30 | 400 | 54 | 3 | 50 | 21 | H | 1 |
| KTW34 | 50 | 34 | 400 | 61.2 | 3 | 50 | 21 | H | 1 |
| KTW40 | 62.5 | 40 | 400 | 72 | 3 | 50 | 21 | H | 1 |
| KTW50 | 75 | 50 | 400 | 90 | 3 | 50 | 21 | H | 1 |
| KTW60 | 87.5 | 60 | 400 | 108 | 3 | 50 | 21 | H | 1 |
| KTW70 | 100 | 70 | 400 | 126 | 3 | 50 | 21 | H | 1 |
| KTW80 | 120 | 80 | 400 | 144 | 3 | 50 | 21 | H | 1 |
| KTW96 | 140 | 96 | 400 | 172.8 | 3 | 50 | 21 | H | 1 |
| KTW112 | 160 | 112 | 400 | 201.6 | 3 | 50 | 21 | H | 1 |
| KTW128 | 180 | 128 | 400 | 230.4 | 3 | 50 | 21 | H | 1 |
| KTW144 | 200 | 144 | 400 | 259.2 | 3 | 50 | 21 | H | 1 |
| KTW160 | 230 | 160 | 400 | 288 | 3 | 50 | 21 | H | 1 |
| KTW184 | 250 | 184 | 400 | 331.2 | 3 | 50 | 21 | H | 1 |
| KTW200 | 250 | 200 | 400 | 360 | 3 | 50 | 21 | H | 1 |
| KTW235 | 293.75 | 200 | 400 | 360 | 3 | 50 | 21 | H | 1 |
| KTW268 | 335 | 235 | 400 | 423 | 3 | 50 | 21 | H | 1 |
| KTW300 | 375 | 268 | 400 | 428.4 | 3 | 50 | 21 | H | 1 |
| KTW400 | 500 | 300 | 400 | 540 | 3 | 50 | 21 | H | 1 |
| KTW440 | 550 | 400 | 400 | 720 | 3 | 50 | 21 | H | 1 |
| KTW488 | 610 | 440 | 400 | 792 | 3 | 50 | 21 | H | 1 |
| KTW536 | 670 | 488 | 400 | 878.4 | 3 | 50 | 21 | H | 0.5 |
| KTW600 | 750 | 536 | 400 | 964.8 | 3 | 50 | 21 | H | 0.5 |
| KTW640 | 800 | 600 | 400 | 1080 | 3 | 50 | 21 | H | 0.5 |
| KTW728 | 910 | 640 | 400 | 1152 | 3 | 50 | 21 | H | 0.5 |
| KTW800 | 1000 | 728 | 400 | 1310.4 | 3 | 50 | 21 | H | 0.5 |
| KTW904 | 1130 | 800 | 400 | 1440 | 3 | 50 | 21 | H | 0.5 |
| KTW1000 | 1250 | 904 | 400 | 1627.2 | 3 | 50 | 21 | H | 0.5 |
| KTW1008 | 1260 | 1000 | 400 | 1800 | 3 | 50 | 21 | H | 0.5 |
| KTW1120 | 1400 | 1008 | 400 | 1814.4 | 3 | 50 | 21 | H | 0.5 |
| KTW1240 | 1550 | 1120 | 400 | 2016 | 3 | 50 | 21 | H | 0.5 |
| KTW1320 | 1650 | 1240 | 400 | 2232 | 3 | 50 | 21 | H | 0.5 |
| KTW1520 | 1900 | 1320 | 400 | 2376 | 3 | 50 | 21 | H | 0.5 |
| KTW1664 | 2080 | 1520 | 400 | 2736 | 3 | 50 | 21 | H | 0.5 |
| KTW1760 | 2200 | 1664 | 400 | 2995.2 | 3 | 50 | 21 | H | 0.5 |
