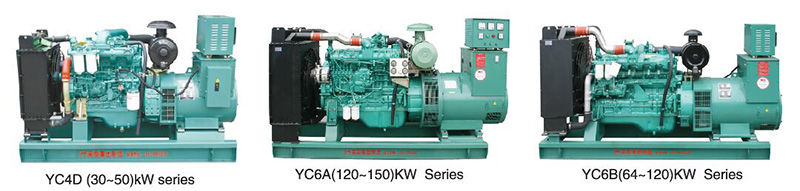

1. Overview of Yuchai generator set
The diesel engine for power generation produced by Yuchai Machinery Co., Ltd. is matched with the domestic high-quality joint venture Yingtai brand generator. It is an excellent national brand. It has compact structure, small size, large power reserve, stable operation, good speed regulation performance, and reliability Higher merit. It is suitable for industrial and mining enterprises, post and telecommunications, shopping malls, hotels, offices, schools, and high-rise buildings as conventional power sources or standby emergency power sources. There is one service outlet every 50 kilometers in the country and more than 30 service outlets internationally, which fills the gap of domestic brand machines (large, medium and small power) exported to foreign countries and has a better service system.
2. Advantages
The supporting motors are all products of domestic and foreign brand manufacturers, mainly including: Wuxi New Era Stanford Motor, Tsinghua Tellhow Sanwave Motor, Italian imported Macadi, Malali, Xun Gao Motor, etc.;
The digital control system is highly intelligent; it can provide products with different functions such as remote computer remote control, group control, telemetry, automatic paralleling, automatic fault protection, etc. according to the different needs of users;
Strong power, it can output the nameplate rated power under the altitude of 2000m, and can output 110% of the rated power overload power in less than 1 hour;
The fuel consumption rate and lubricating oil consumption rate are far better than similar domestic products;
Low vibration, low noise, high reliability;
Low emission, in line with national environmental protection requirements;
Product quality fully meets or exceeds relevant national standards;
The three-guarantee period of 14 months or 1500 hours is longer nationwide;
The 1,168 service stations established by Yuchai nationwide will provide users with fast and timely high-quality services.
Outstanding power-make the world more brilliant.
3. Features
1. Yuchai has produced diesel generator sets for more than 40 years, and the products are widely used in military, civilian, marine and other fields;
2. The supporting power of Yuchai generator set products are all high-quality diesel engines produced by Yuchai;
3. The supporting motors are all products of domestic and foreign brand manufacturers. The main generators are: Huachang, Yanke, Kaihua, Kaijieli, Inge, Stanford, Marathon, Leroy Somer, Siemens, Qianghui, Megat;
4. The digital control system is highly intelligent; it can provide products with different functions such as remote computer remote control, group control, telemetry, automatic paralleling, and automatic fault protection according to the different needs of users;
5. Strong power, can output nameplate rated power below 1000m altitude, and can output 110% overload power of rated power in less than 1 hour;
6. The fuel consumption rate and lubricating oil consumption rate are far better than similar domestic products;
7. Low vibration, low noise, high reliability;
8. Low emission, in line with national environmental protection requirements;
9. Product quality fully meets or exceeds relevant national standards;
The three-guarantee period of 10, 14 months or 1500 hours is longer in the country;
11. The 1,168 service stations set up by Yuchai generator sets nationwide will provide users with fast and timely high-quality services.
Four, specifications
GUANGXI yuchai series diesel generator sets | ||||||||||
Genset | ||||||||||
Genset Model | Main power (main use) | Standby power (standby) | Power(A) | Power(A) | Net Weight (kg) | Dimensions L*W*H(m) | Brand | Engine Type | ||
KW | KVA | KW | KVA | |||||||
30GF | 30 | 37.5 | 35 | 43.75 | 54 | 63 | 858 | 1.85*0.77*1.20 | GUANGXI YUCHAI | YC4D60-D21 |
48GF | 48 | 60 | 50 | 62.5 | 86.4 | 90 | 868 | 1.9*0.77*1.20 | YC4D85Z-D20 | |
50GF | 50 | 62.5 | 58 | 72.5 | 90 | 104.4 | 872 | 1.9*0.77*1.20 | YC4D90Z-D21 | |
80GF | 80 | 100 | 90 | 112.5 | 144 | 162 | 1328 | 2.30*0.80*1.30 | YC6B135Z-D20 | |
90GF | 90 | 112.5 | 100 | 125 | 162 | 180 | 1378 | 2.40*0.80*1.33 | YC6B155L-D21 | |
100GF | 100 | 125 | 110 | 137.5 | 180 | 198 | 1378 | 2.50*0.90*1.40 | YC6B180L-D20 | |
120GF | 120 | 150 | 140 | 175 | 216 | 252 | 1520 | 2.50*0.90*1.40 | YC6B205L-D20 | |
140GF | 140 | 175 | 150 | 187.5 | 252 | 270 | 1554 | 2.50*0.85*1.45 | YC6A230L-D20 | |
144GF | 144 | 180 | 160 | 200 | 259.2 | 288 | 1600 | 2.50*0.96*1.52 | YC6A245L-D21 | |
200GF | 200 | 250 | 220 | 275 | 360 | 396 | 2046 | 2.90*1.10*1.66 | YC6MK350L-D20 | |
250GF | 250 | 312.5 | 280 | 350 | 450 | 504 | 2056 | 2.83*1.05*1.75 | YC6MK420L-D20 | |
280GF | 280 | 350 | 300 | 375 | 504 | 540 | 2108 | 2.93*1.05*1.75 | YC6MJ480L-D20 | |
320GF | 320 | 400 | 350 | 437.5 | 576 | 630 | 3525 | 3.55*1.25*1.80 | YC6T550L-D21 | |
360GF | 360 | 450 | 400 | 500 | 648 | 720 | 3735 | 3.52*1.23*1.80 | YC6T600L-D22 | |
400GF | 400 | 500 | 440 | 550 | 720 | 792 | 3735 | 3.52*1.23*1.80 | YC6T660L-D20 | |
450GF | 450 | 562.5 | 500 | 625 | 810 | 900 | 3900 | 3.70*1.58*2.13 | YC6TD780L-D20 | |
500GF | 500 | 625 | 550 | 687.5 | 900 | 990 | 4000 | 3.70*1.58*2.13 | YC6TD840L-D20 | |
600GF | 600 | 750 | 660 | 825 | 1080 | 1188 | 8500 | 4.50*1.68*2.31 | YC6C1020L-D20 | |
650GF | 650 | 812.5 | 715 | 893.75 | 1170 | 1287 | 8550 | 4.50*1.68*2.31 | YC6C1070L-D20 | |
16GF | 16 | 20 | 18 | 22.5 | 28.8 | 32.4 | 460 | 1.4*0.6*1.08 | 4D24G6 | |
16GF | 16 | 20 | 18 | 22.5 | 28.8 | 32.4 | 460 | 1.4*0.6*1.08 | 4D24G4/A | |
20GF | 20 | 25 | 22 | 27.5 | 36 | 39.6 | 490 | 1.5*0.6*1.08 | 4D24G7 | |
20GF | 20 | 25 | 22 | 27.5 | 36 | 39.6 | 490 | 1.5*0.6*1.08 | 4D24G2/A | |
24GF | 24 | 30 | 26 | 32.5 | 43.2 | 46.8 | 500 | 1.5*0.6*1.08 | 4D24TG2 | |
24GF | 24 | 30 | 36 | 32.5 | 43.2 | 46.8 | 500 | 1.5*0.6*1.08 | 4D24TG2/A | |
30GF | 30 | 37.5 | 33 | 41.25 | 54 | 59.4 | 600 | 1.5*0.6*1.08 | 4D24TG0 | |
30GF | 30 | 37.5 | 33 | 41.25 | 54 | 59.4 | 600 | 1.5*0.6*1.08 | 4D24TG0/A | |
40GF | 40 | 20 | 50 | 62.5 | 72 | 90 | 660 | 1.8*0.75*1.2 | YC4D80-D34 | |
50GF | 50 | 62.5 | 55 | 68.75 | 90 | 99 | 700 | 1.9*0.75*1.2 | YC4D90-D34 | |
60GF | 60 | 75 | 64 | 80 | 108 | 115.2 | 760 | 1.9*0.75*1.2 | YC4D105-D34 | |
70GF | 70 | 87.5 | 80 | 100 | 126 | 144 | 875 | 2.0*0.75*1.22 | YC4D120-D30 | |
80GF | 80 | 100 | 90 | 112.5 | 144 | 162 | 875 | 2.0*0.75*1.22 | YC4D140-D30 | |
90GF | 90 | 112.5 | 100 | 125 | 162 | 180 | 895 | 2.0*0.75*1.22 | YC4D155-D30 | |
90GF | 90 | 112.5 | 100 | 125 | 180 | 180 | 1100 | 2.0*0.75*1.4 | YC4A155-D30 | |
100GF | 100 | 125 | 110 | 137.5 | 180 | 198 | 1205 | 2.2*0.8*1.4 | YC4A165-D30 | |
110GF | 110 | 137.5 | 120 | 150 | 198 | 216 | 1235 | 2.2*0.8*1.4 | YC4A190-D30 | |
110GF | 110 | 137.5 | 120 | 150 | 198 | 216 | 1500 | 2.4*0.96*1.52 | YC6A190-D30 | |
120GF | 120 | 150 | 140 | 175 | 216 | 252 | 1500 | 2.4*0.96*1.52 | YC6A205-D30 | |
140GF | 140 | 175 | 150 | 187.5 | 252 | 270 | 1550 | 2.5*0.96*1.52 | YC6A230-D30 | |
150GF | 150 | 187.5 | 160 | 200 | 270 | 288 | 1550 | 2.5*0.96*1.52 | YC6A245-D30 | |
160GF | 160 | 200 | 180 | 225 | 288 | 324 | 1550 | 2.5*0.96*1.52 | YC6A275-D30 | |
200GF | 200 | 250 | 220 | 275 | 360 | 396 | 2085 | 2.9*1.13*1.7 | YC6MK350-D30 | |
250GF | 250 | 312.5 | 280 | 350 | 450 | 504 | 2200 | 3.0*1.13*1.7 | YC6MK420-D30 | |
280GF | 280 | 350 | 300 | 375 | 504 | 540 | 2200 | 3.0*1.13*1.7 | YC6MK450-D30 | |
300GF | 300 | 375 | 330 | 412.5 | 540 | 594 | 2400 | 3.1*1.13*1.82 | YC6K500-D31 | |
300GF | 300 | 375 | 330 | 412.5 | 540 | 594 | 2400 | 3.1*1.13*1.82 | YC6K500-D30 | |
320GF | 320 | 400 | 350 | 437.5 | 576 | 630 | 2500 | 3.1*1.13*1.82 | YC6K520-D30 | |
350GF | 350 | 437.5 | 380 | 475 | 630 | 684 | 2650 | 3.2*1.13*1.82 | YC6K570-D30 | |
400GF | 400 | 500 | 440 | 550 | 720 | 792 | 3800 | 3.6*1.24*1.95 | YC6T660-D31 | |
450GF | 450 | 562.5 | 500 | 625 | 810 | 900 | 5200 | 3.6*1.58*2.13 | YC6TD780-D31 | |
500GF | 500 | 625 | 550 | 687.5 | 900 | 990 | 5500 | 3.6*1.58*2.13 | YC6TD840-D31 | |
550GF | 550 | 687.5 | 600 | 750 | 990 | 1080 | 6000 | 3.6*1.58*2.13 | YC6TD900-D31 | |
600GF | 600 | 750 | 660 | 825 | 1080 | 1188 | 7000 | 4.5*1.68*2.31 | YC6C1020-D31 | |
600GF | 600 | 750 | 660 | 825 | 1080 | 1188 | 6100 | 3.6*1.83*2.13 | YC6TD1000-D30 | |
650GF | 650 | 812.5 | 710 | 887.5 | 1170 | 1278 | 7200 | 4.5*1.68*2.31 | YC6C1070-D31 | |
730GF | 730 | 912.5 | 800 | 1000 | 1314 | 1440 | 7500 | 4.7*1.76*2.56 | YC6C1220-D31 | |
800GF | 800 | 1000 | 900 | 1125 | 1440 | 1620 | 8000 | 4.7*1.76*2.56 | YC6C1320-D31 | |
900GF | 900 | 1125 | 1000 | 1250 | 1620 | 1800 | 8200 | 4.7*2.15*2.56 | YC6C1520-D31 | |
1000GF | 1000 | 1250 | 1100 | 1375 | 1800 | 1980 | 8500 | 4.7*2.0*2.3 | YC6C1660-D30 | |
1000GF | 1000 | 1250 | 1100 | 1375 | 1800 | 1980 | 13600 | 5.5*2.1*2.56 | YC12VC1680-D31 | |
1200GF | 1200 | 1500 | 13500 | 16875 | 2160 | 24300 | 14500 | 5.5*2.1*2.56 | YC12VC2070-D31 | |
1350GF | 1350 | 1687.5 | 1500 | 1875 | 2430 | 2700 | 14700 | 5.5*2.1*2.56 | YC12VC2270-D31 | |
1500GF | 1500 | 1875 | 1600 | 2000 | 2700 | 2880 | 15000 | 5.7*2.1*2.94 | YC12VC2510-D31 | |
1700GF | 1700 | 2125 | 1800 | 2250 | 3060 | 3240 | 15500 | 5.7*2.1*2.94 | YC12VC2700-D31 | |
1800GF | 1800 | 2250 | 2000 | 2500 | 3240 | 3600 | 17000 | 7.0*2.96*3.5 | YC16VC3000-D31 | |
2000GF | 2000 | 2500 | 2200 | 2750 | 3600 | 3960 | 18000 | 7.0*2.96*3.5 | YC16VC3300-D31 | |
2200GF | 2200 | 2750 | 2400 | 3000 | 3960 | 4320 | 19000 | 7.0*2.96*3.5 | YC16VC3600-D31 | |
7 |
Engine | |||||||||||
power (Main) Power (KW) | Rate (standby) Power (KW) | No Of Cylinders | Bore/ Strokse (mm) | Exhaust Cspacity (L) | Compression Ratio | Lubricating Capacit y(L) | Fuel Consumptio (g/kw.h) | Fuel Consumptio (l/h) | Type Of Governor | L Liquid coolind capacity | Emission leveis |
40 | 44 | 4 | 108×115 | 4.214 | 17.5:1 | 14 | ≤218 | 10.4 | Electronic speed control/mechanical | 21.35 | T2 |
55 | 60.5 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤224 | 14.7 | Electronic speed control/mechanical | 30 | T2 |
60 | 66 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤228 | 16.3 | Electronic speed control/mechanical | 24 | T2 |
90 | 99 | 6 | 108×125 | 6.871 | 17.5:1 | 17 | ≤225 | 24.3 | Electronic speed control/mechanical | 30 | T2 |
103 | 113 | 6 | 108×125 | 6.871 | 17.5:1 | 17 | ≤216 | 26.6 | Electronic speed control/mechanical | 31 | T2 |
120 | 132 | 6 | 108×125 | 6.871 | 17.5:1 | 17 | ≤199 | 28.5 | Electronic speed control/mechanical | 31 | T2 |
138 | 152 | 6 | 108×125 | 6.871 | 17.5:1 | 17 | ≤211 | 34.9 | Electronic speed control | 45 | T2 |
155 | 171 | 6 | 108×132 | 7.255 | 17.5:1 | 22 | ≤204 | 37.8 | Electronic speed control/mechanical | 45 | T2 |
165 | 182 | 6 | 108×132 | 7.255 | 17.5:1 | 24 | ≤204 | 40.1 | Electronic speed control | 55 | T2 |
235 | 259 | 6 | 123×145 | 10.340 | 16.8:1 | 30 | ≤203.3 | 46.7 | Electronic speed control/mechanical | 65 | T2 |
281 | 309 | 6 | 123×145 | 10.340 | 16.8:1 | 30 | ≤204 | 69.1 | Electronic speed control | 65 | T2 |
321 | 352 | 6 | 131×145 | 11.726 | 16.8:1 | 30 | ≤206 | 79.2 | Electronic speed control | 62 | T2 |
368 | 405 | 6 | 145×165 | 16.350 | 15:1 | 56 | ≤203.4 | 89.6 | Electronic speed control | 89 | T2 |
401 | 441 | 6 | 145×165 | 16.350 | 15:1 | 56 | ≤205 | 98.2 | Electronic speed control | 89 | T2 |
441 | 485 | 6 | 145×165 | 16.350 | 15:1 | 56 | ≤208.4 | 110.1 | Electronic speed control | 89 | T2 |
520 | 572 | 6 | 152×180 | 19.598 | 14:1 | 55 | ≤221 | 137.2 | Electronic speed control / injection / electronic control unit pump | 130.5 | T2 |
561 | 616 | 6 | 152×180 | 19.598 | 14:1 | 55 | ≤225 | 151.2 | Electronic speed control / injection / electronic control unit pump | 130.5 | T2 |
680 | 748 | 6 | 200×210 | 39.584 | 14.5:1 | 160 | ≤218 | 191.7 | EFI | 195 | T2 |
715 | 787 | 6 | 200×210 | 39.584 | 14.5:1 | 160 | ≤214 | 183.2 | EFI | 195 | T2 |
18.5 | 20.4 | 4 | 87×103 | 2.45 | 19:01 | 9.5 | ≤212 | 4.8 | Electronically controlled VP pump | 8.2 | T3 |
18.5 | 20.4 | 4 | 87×103 | 2.450 | 19:1 | 9.5 | ≤212 | 4.8 | EFI | 8.2 | Euro 3 |
23 | 25.4 | 4 | 87×103 | 2.45 | 19:1 | 9.5 | ≤212 | 6.9 | Electronically controlled VP pump | 13.2 | T3 |
23 | 28 | 4 | 87×103 | 2.450 | 19:1 | 9.5 | ≤212 | 6.9 | EFI | 13.2 | Euro 3 |
28 | 30.8 | 4 | 87×103 | 2.450 | 19:1 | 9.5 | ≤212 | 7.2 | EFI | 15 | T3 |
28 | 30.8 | 4 | 87×103 | 2.450 | 19:1 | 9.5 | ≤212 | 7.2 | EFI | 15 | Euro 3 |
36 | 39.6 | 4 | 87×103 | 2.45 | 17.8:1 | 9.5 | ≤212 | 9 | Electronically controlled VP pump | 15 | T3 |
36.8 | 40.5 | 4 | 87×103 | 2.450 | 17.5:1 | 8 | ≤212 | 9 | EFI | 13.2 | Euro 3 |
53 | 59 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤215 | 13.7 | Electronically controlled high pressure common rail/jet | 27 | T3 |
60 | 66 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤215 | 15.4 | Electronically controlled high pressure common rail | 27 | T3 |
70 | 77 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤215 | 18 | Electronically controlled high pressure common rail | 27 | T3 |
80 | 88 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤210 | 20.1 | Electronically controlled high pressure common rail | 27 | T3 |
95 | 105 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤210 | 23.8 | Electronically controlled high pressure common rail | 27 | T3 |
103 | 113 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤210 | 27.1 | Electronically controlled high pressure common rail | 27 | T3 |
103 | 113 | 4 | 108×132 | 4.837 | 17.5:1 | 17 | ≤220 | 27.1 | Electronically controlled high pressure common rail | 27 | T3 |
110 | 121 | 4 | 108×132 | 4.837 | 17.5:1 | 17 | ≤213 | 28.3 | Electronically controlled high pressure common rail | 27 | T3 |
125 | 138 | 4 | 108×132 | 4.837 | 17.5:1 | 17 | ≤213 | 31.9 | Electronically controlled high pressure common rail | 27 | T3 |
125 | 138 | 4 | 108×132 | 4.837 | 17.5:1 | 24 | ≤218 | 32.6 | Electronically controlled high pressure common rail | 55 | T3 |
138 | 152 | 6 | 108×132 | 7.255 | 17.5:1 | 24 | ≤214 | 35.2 | Electronic speed control/spray/ | 55 | T3 |
155 | 171 | 6 | 108×132 | 7.255 | 17.5:1 | 24 | ≤214.3 | 39.8 | Electronic speed control/spray/ | 55 | T3 |
165 | 181 | 6 | 108×132 | 7.255 | 17.5:1 | 24 | ≤211.4 | 41.8 | Electronic speed control/spray/ | 55 | T3 |
185 | 203 | 6 | 108×132 | 7.255 | 17.5:1 | 24 | ≤212.6 | 47.1 | Electronic speed control/spray | 55 | T3 |
235 | 259 | 6 | 123×145 | 10.338 | 16.8:1 | 30 | ≤204.4 | 57.5 | Electronic speed control/spray | 65 | T3 |
281 | 309 | 6 | 123×145 | 10.338 | 16.8:1 | 30 | ≤203.1 | 68.3 | Electronic speed control/spray | 65 | T3 |
301 | 331 | 6 | 123×145 | 10.338 | 16.8:1 | 30 | ≤201.4 | 72.6 | Electronic speed control/spray | 65 | T3 |
335 | 368 | 6 | 129×155 | 12.160 | 16.5:1 | 32 | ≤203 | 83 | Electronic speed control/spray | 65 | T3 |
335 | 368 | 6 | 129×155 | 12.155 | 16.5:1 | 32 | ≤203 | 83 | Electronic speed control/spray | 65 | T3 |
356 | 382 | 6 | 129×155 | 12.160 | 16.5:1 | 32 | ≤207 | 87 | Electronic speed control / injection / electronic control high pressure common rail | 65 | T3 |
389 | 420 | 6 | 129×165 | 12.940 | 16.5:1 | 32 | ≤208 | 99 | Electronic speed control / injection / electronic control high pressure common rail | 65 | T3 |
441 | 485 | 6 | 145×165 | 16.350 | 15:1 | 56 | ≤215.5 | 113.8 | Electronic speed control / injection / electronic control unit pump | 88 | T3 |
520 | 572 | 6 | 152×180 | 19.598 | 14:1 | 55 | ≤220 | 137 | Electronic speed control / injection / electronic control unit pump | 130.5 | T3 |
561 | 616 | 6 | 152×180 | 19.598 | 14:1 | 55 | ≤214.9 | 144.9 | Electronic speed control / injection / electronic control unit pump | 130.5 | T3 |
605 | 665 | 6 | 152×180 | 19.598 | 14:1 | 55 | ≤213 | 154.3 | Electronically controlled unit pump | 148 | T3 |
680 | 748 | 6 | 200×210 | 39.584 | 14.5:1 | 180 | ≤220 | 166.4 | Electronically controlled unit pump | 90 | T3 |
668 | 735 | 6 | 152×180 | 19.598 | 14:1 | 55 | ≤208 | 166.4 | Electronically controlled high pressure common rail | 160 | T3 |
715 | 787 | 6 | 200×210 | 39.584 | 14.5:1 | 160 | ≤212.1 | 181.6 | Electronically controlled unit pump | 230 | T3 |
815 | 897 | 6 | 200×210 | 39.584 | 14.5:1 | 160 | ≤209 | 203.7 | Electronically controlled unit pump | 230 | T3 |
880 | 968 | 6 | 200×210 | 39.584 | 14.5:1 | 160 | ≤209 | 220.2 | Electronically controlled unit pump | 230 | T3 |
1016 | 1118 | 6 | 200×210 | 39.584 | 13.5:1 | 160 | ≤208.2 | 253.3 | Electronically controlled unit pump | 230 | T3 |
1100 | 1221 | 6 | 200×210 | 39.584 | 13.5:1 | 160 | 208.2 | 276.8 | Electronically controlled high pressure common rail | 230 | T3 |
1120 | 1230 | 12 | 200×210 | 79.170 | 13.5:1 | 340 | ≤210 | 281.7 | Electronically controlled unit pump | 554 | T3 |
1380 | 1520 | 12 | 200×210 | 79.170 | 13.5:1 | 340 | ≤205.3 | 339.2 | Electronically controlled unit pump | 608 | T3 |
1520 | 1670 | 12 | 200×210 | 79.170 | 13.5:1 | 340 | ≤203.6 | 370.6 | Electronically controlled unit pump | 626 | T3 |
1680 | 1850 | 12 | 200×210 | 79.170 | 13.5:1 | 340 | ≤207 | 319.9 | Electronically controlled unit pump | 651 | T3 |
1805 | 1985 | 12 | 200×210 | 79.170 | 13.5:1 | 370 | ≤204.4 | 441.9 | Electronically controlled unit pump | 676 | T3 |
2005 | 2206 | 16 | 200×210 | 105.558 | 13.5:1 | 430 | ≤206 | 493.9 | Electronically controlled unit pump | 623.6 | T3 |
2205 | 2426 | 16 | 200×210 | 105.558 | 13.5:1 | 430 | ≤206 | 543.2 | Electronically controlled unit pump | 623.6 | T3 |
2405 | 2640 | 16 | 200×210 | 105.558 | 13.5:1 | 430 | ≤206 | 597.5 | Electronically controlled unit pump | 623.6 | T3 |
8 |
1. Overview of Yuchai generator set
The diesel engine for power generation produced by Yuchai Machinery Co., Ltd. is matched with the domestic high-quality joint venture Yingtai brand generator. It is an excellent national brand. It has compact structure, small size, large power reserve, stable operation, good speed regulation performance, and reliability Higher merit. It is suitable for industrial and mining enterprises, post and telecommunications, shopping malls, hotels, offices, schools, and high-rise buildings as conventional power sources or standby emergency power sources. There is one service outlet every 50 kilometers in the country and more than 30 service outlets internationally, which fills the gap of domestic brand machines (large, medium and small power) exported to foreign countries and has a better service system.
2. Advantages
The supporting motors are all products of domestic and foreign brand manufacturers, mainly including: Wuxi New Era Stanford Motor, Tsinghua Tellhow Sanwave Motor, Italian imported Macadi, Malali, Xun Gao Motor, etc.;
The digital control system is highly intelligent; it can provide products with different functions such as remote computer remote control, group control, telemetry, automatic paralleling, automatic fault protection, etc. according to the different needs of users;
Strong power, it can output the nameplate rated power under the altitude of 2000m, and can output 110% of the rated power overload power in less than 1 hour;
The fuel consumption rate and lubricating oil consumption rate are far better than similar domestic products;
Low vibration, low noise, high reliability;
Low emission, in line with national environmental protection requirements;
Product quality fully meets or exceeds relevant national standards;
The three-guarantee period of 14 months or 1500 hours is longer nationwide;
The 1,168 service stations established by Yuchai nationwide will provide users with fast and timely high-quality services.
Outstanding power-make the world more brilliant.
3. Features
1. Yuchai has produced diesel generator sets for more than 40 years, and the products are widely used in military, civilian, marine and other fields;
2. The supporting power of Yuchai generator set products are all high-quality diesel engines produced by Yuchai;
3. The supporting motors are all products of domestic and foreign brand manufacturers. The main generators are: Huachang, Yanke, Kaihua, Kaijieli, Inge, Stanford, Marathon, Leroy Somer, Siemens, Qianghui, Megat;
4. The digital control system is highly intelligent; it can provide products with different functions such as remote computer remote control, group control, telemetry, automatic paralleling, and automatic fault protection according to the different needs of users;
5. Strong power, can output nameplate rated power below 1000m altitude, and can output 110% overload power of rated power in less than 1 hour;
6. The fuel consumption rate and lubricating oil consumption rate are far better than similar domestic products;
7. Low vibration, low noise, high reliability;
8. Low emission, in line with national environmental protection requirements;
9. Product quality fully meets or exceeds relevant national standards;
The three-guarantee period of 10, 14 months or 1500 hours is longer in the country;
11. The 1,168 service stations set up by Yuchai generator sets nationwide will provide users with fast and timely high-quality services.
Four, specifications
GUANGXI yuchai series diesel generator sets | ||||||||||
Genset | ||||||||||
Genset Model | Main power (main use) | Standby power (standby) | Power(A) | Power(A) | Net Weight (kg) | Dimensions L*W*H(m) | Brand | Engine Type | ||
KW | KVA | KW | KVA | |||||||
30GF | 30 | 37.5 | 35 | 43.75 | 54 | 63 | 858 | 1.85*0.77*1.20 | GUANGXI YUCHAI | YC4D60-D21 |
48GF | 48 | 60 | 50 | 62.5 | 86.4 | 90 | 868 | 1.9*0.77*1.20 | YC4D85Z-D20 | |
50GF | 50 | 62.5 | 58 | 72.5 | 90 | 104.4 | 872 | 1.9*0.77*1.20 | YC4D90Z-D21 | |
80GF | 80 | 100 | 90 | 112.5 | 144 | 162 | 1328 | 2.30*0.80*1.30 | YC6B135Z-D20 | |
90GF | 90 | 112.5 | 100 | 125 | 162 | 180 | 1378 | 2.40*0.80*1.33 | YC6B155L-D21 | |
100GF | 100 | 125 | 110 | 137.5 | 180 | 198 | 1378 | 2.50*0.90*1.40 | YC6B180L-D20 | |
120GF | 120 | 150 | 140 | 175 | 216 | 252 | 1520 | 2.50*0.90*1.40 | YC6B205L-D20 | |
140GF | 140 | 175 | 150 | 187.5 | 252 | 270 | 1554 | 2.50*0.85*1.45 | YC6A230L-D20 | |
144GF | 144 | 180 | 160 | 200 | 259.2 | 288 | 1600 | 2.50*0.96*1.52 | YC6A245L-D21 | |
200GF | 200 | 250 | 220 | 275 | 360 | 396 | 2046 | 2.90*1.10*1.66 | YC6MK350L-D20 | |
250GF | 250 | 312.5 | 280 | 350 | 450 | 504 | 2056 | 2.83*1.05*1.75 | YC6MK420L-D20 | |
280GF | 280 | 350 | 300 | 375 | 504 | 540 | 2108 | 2.93*1.05*1.75 | YC6MJ480L-D20 | |
320GF | 320 | 400 | 350 | 437.5 | 576 | 630 | 3525 | 3.55*1.25*1.80 | YC6T550L-D21 | |
360GF | 360 | 450 | 400 | 500 | 648 | 720 | 3735 | 3.52*1.23*1.80 | YC6T600L-D22 | |
400GF | 400 | 500 | 440 | 550 | 720 | 792 | 3735 | 3.52*1.23*1.80 | YC6T660L-D20 | |
450GF | 450 | 562.5 | 500 | 625 | 810 | 900 | 3900 | 3.70*1.58*2.13 | YC6TD780L-D20 | |
500GF | 500 | 625 | 550 | 687.5 | 900 | 990 | 4000 | 3.70*1.58*2.13 | YC6TD840L-D20 | |
600GF | 600 | 750 | 660 | 825 | 1080 | 1188 | 8500 | 4.50*1.68*2.31 | YC6C1020L-D20 | |
650GF | 650 | 812.5 | 715 | 893.75 | 1170 | 1287 | 8550 | 4.50*1.68*2.31 | YC6C1070L-D20 | |
16GF | 16 | 20 | 18 | 22.5 | 28.8 | 32.4 | 460 | 1.4*0.6*1.08 | 4D24G6 | |
16GF | 16 | 20 | 18 | 22.5 | 28.8 | 32.4 | 460 | 1.4*0.6*1.08 | 4D24G4/A | |
20GF | 20 | 25 | 22 | 27.5 | 36 | 39.6 | 490 | 1.5*0.6*1.08 | 4D24G7 | |
20GF | 20 | 25 | 22 | 27.5 | 36 | 39.6 | 490 | 1.5*0.6*1.08 | 4D24G2/A | |
24GF | 24 | 30 | 26 | 32.5 | 43.2 | 46.8 | 500 | 1.5*0.6*1.08 | 4D24TG2 | |
24GF | 24 | 30 | 36 | 32.5 | 43.2 | 46.8 | 500 | 1.5*0.6*1.08 | 4D24TG2/A | |
30GF | 30 | 37.5 | 33 | 41.25 | 54 | 59.4 | 600 | 1.5*0.6*1.08 | 4D24TG0 | |
30GF | 30 | 37.5 | 33 | 41.25 | 54 | 59.4 | 600 | 1.5*0.6*1.08 | 4D24TG0/A | |
40GF | 40 | 20 | 50 | 62.5 | 72 | 90 | 660 | 1.8*0.75*1.2 | YC4D80-D34 | |
50GF | 50 | 62.5 | 55 | 68.75 | 90 | 99 | 700 | 1.9*0.75*1.2 | YC4D90-D34 | |
60GF | 60 | 75 | 64 | 80 | 108 | 115.2 | 760 | 1.9*0.75*1.2 | YC4D105-D34 | |
70GF | 70 | 87.5 | 80 | 100 | 126 | 144 | 875 | 2.0*0.75*1.22 | YC4D120-D30 | |
80GF | 80 | 100 | 90 | 112.5 | 144 | 162 | 875 | 2.0*0.75*1.22 | YC4D140-D30 | |
90GF | 90 | 112.5 | 100 | 125 | 162 | 180 | 895 | 2.0*0.75*1.22 | YC4D155-D30 | |
90GF | 90 | 112.5 | 100 | 125 | 180 | 180 | 1100 | 2.0*0.75*1.4 | YC4A155-D30 | |
100GF | 100 | 125 | 110 | 137.5 | 180 | 198 | 1205 | 2.2*0.8*1.4 | YC4A165-D30 | |
110GF | 110 | 137.5 | 120 | 150 | 198 | 216 | 1235 | 2.2*0.8*1.4 | YC4A190-D30 | |
110GF | 110 | 137.5 | 120 | 150 | 198 | 216 | 1500 | 2.4*0.96*1.52 | YC6A190-D30 | |
120GF | 120 | 150 | 140 | 175 | 216 | 252 | 1500 | 2.4*0.96*1.52 | YC6A205-D30 | |
140GF | 140 | 175 | 150 | 187.5 | 252 | 270 | 1550 | 2.5*0.96*1.52 | YC6A230-D30 | |
150GF | 150 | 187.5 | 160 | 200 | 270 | 288 | 1550 | 2.5*0.96*1.52 | YC6A245-D30 | |
160GF | 160 | 200 | 180 | 225 | 288 | 324 | 1550 | 2.5*0.96*1.52 | YC6A275-D30 | |
200GF | 200 | 250 | 220 | 275 | 360 | 396 | 2085 | 2.9*1.13*1.7 | YC6MK350-D30 | |
250GF | 250 | 312.5 | 280 | 350 | 450 | 504 | 2200 | 3.0*1.13*1.7 | YC6MK420-D30 | |
280GF | 280 | 350 | 300 | 375 | 504 | 540 | 2200 | 3.0*1.13*1.7 | YC6MK450-D30 | |
300GF | 300 | 375 | 330 | 412.5 | 540 | 594 | 2400 | 3.1*1.13*1.82 | YC6K500-D31 | |
300GF | 300 | 375 | 330 | 412.5 | 540 | 594 | 2400 | 3.1*1.13*1.82 | YC6K500-D30 | |
320GF | 320 | 400 | 350 | 437.5 | 576 | 630 | 2500 | 3.1*1.13*1.82 | YC6K520-D30 | |
350GF | 350 | 437.5 | 380 | 475 | 630 | 684 | 2650 | 3.2*1.13*1.82 | YC6K570-D30 | |
400GF | 400 | 500 | 440 | 550 | 720 | 792 | 3800 | 3.6*1.24*1.95 | YC6T660-D31 | |
450GF | 450 | 562.5 | 500 | 625 | 810 | 900 | 5200 | 3.6*1.58*2.13 | YC6TD780-D31 | |
500GF | 500 | 625 | 550 | 687.5 | 900 | 990 | 5500 | 3.6*1.58*2.13 | YC6TD840-D31 | |
550GF | 550 | 687.5 | 600 | 750 | 990 | 1080 | 6000 | 3.6*1.58*2.13 | YC6TD900-D31 | |
600GF | 600 | 750 | 660 | 825 | 1080 | 1188 | 7000 | 4.5*1.68*2.31 | YC6C1020-D31 | |
600GF | 600 | 750 | 660 | 825 | 1080 | 1188 | 6100 | 3.6*1.83*2.13 | YC6TD1000-D30 | |
650GF | 650 | 812.5 | 710 | 887.5 | 1170 | 1278 | 7200 | 4.5*1.68*2.31 | YC6C1070-D31 | |
730GF | 730 | 912.5 | 800 | 1000 | 1314 | 1440 | 7500 | 4.7*1.76*2.56 | YC6C1220-D31 | |
800GF | 800 | 1000 | 900 | 1125 | 1440 | 1620 | 8000 | 4.7*1.76*2.56 | YC6C1320-D31 | |
900GF | 900 | 1125 | 1000 | 1250 | 1620 | 1800 | 8200 | 4.7*2.15*2.56 | YC6C1520-D31 | |
1000GF | 1000 | 1250 | 1100 | 1375 | 1800 | 1980 | 8500 | 4.7*2.0*2.3 | YC6C1660-D30 | |
1000GF | 1000 | 1250 | 1100 | 1375 | 1800 | 1980 | 13600 | 5.5*2.1*2.56 | YC12VC1680-D31 | |
1200GF | 1200 | 1500 | 13500 | 16875 | 2160 | 24300 | 14500 | 5.5*2.1*2.56 | YC12VC2070-D31 | |
1350GF | 1350 | 1687.5 | 1500 | 1875 | 2430 | 2700 | 14700 | 5.5*2.1*2.56 | YC12VC2270-D31 | |
1500GF | 1500 | 1875 | 1600 | 2000 | 2700 | 2880 | 15000 | 5.7*2.1*2.94 | YC12VC2510-D31 | |
1700GF | 1700 | 2125 | 1800 | 2250 | 3060 | 3240 | 15500 | 5.7*2.1*2.94 | YC12VC2700-D31 | |
1800GF | 1800 | 2250 | 2000 | 2500 | 3240 | 3600 | 17000 | 7.0*2.96*3.5 | YC16VC3000-D31 | |
2000GF | 2000 | 2500 | 2200 | 2750 | 3600 | 3960 | 18000 | 7.0*2.96*3.5 | YC16VC3300-D31 | |
2200GF | 2200 | 2750 | 2400 | 3000 | 3960 | 4320 | 19000 | 7.0*2.96*3.5 | YC16VC3600-D31 | |
7 |
Engine | |||||||||||
power (Main) Power (KW) | Rate (standby) Power (KW) | No Of Cylinders | Bore/ Strokse (mm) | Exhaust Cspacity (L) | Compression Ratio | Lubricating Capacit y(L) | Fuel Consumptio (g/kw.h) | Fuel Consumptio (l/h) | Type Of Governor | L Liquid coolind capacity | Emission leveis |
40 | 44 | 4 | 108×115 | 4.214 | 17.5:1 | 14 | ≤218 | 10.4 | Electronic speed control/mechanical | 21.35 | T2 |
55 | 60.5 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤224 | 14.7 | Electronic speed control/mechanical | 30 | T2 |
60 | 66 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤228 | 16.3 | Electronic speed control/mechanical | 24 | T2 |
90 | 99 | 6 | 108×125 | 6.871 | 17.5:1 | 17 | ≤225 | 24.3 | Electronic speed control/mechanical | 30 | T2 |
103 | 113 | 6 | 108×125 | 6.871 | 17.5:1 | 17 | ≤216 | 26.6 | Electronic speed control/mechanical | 31 | T2 |
120 | 132 | 6 | 108×125 | 6.871 | 17.5:1 | 17 | ≤199 | 28.5 | Electronic speed control/mechanical | 31 | T2 |
138 | 152 | 6 | 108×125 | 6.871 | 17.5:1 | 17 | ≤211 | 34.9 | Electronic speed control | 45 | T2 |
155 | 171 | 6 | 108×132 | 7.255 | 17.5:1 | 22 | ≤204 | 37.8 | Electronic speed control/mechanical | 45 | T2 |
165 | 182 | 6 | 108×132 | 7.255 | 17.5:1 | 24 | ≤204 | 40.1 | Electronic speed control | 55 | T2 |
235 | 259 | 6 | 123×145 | 10.340 | 16.8:1 | 30 | ≤203.3 | 46.7 | Electronic speed control/mechanical | 65 | T2 |
281 | 309 | 6 | 123×145 | 10.340 | 16.8:1 | 30 | ≤204 | 69.1 | Electronic speed control | 65 | T2 |
321 | 352 | 6 | 131×145 | 11.726 | 16.8:1 | 30 | ≤206 | 79.2 | Electronic speed control | 62 | T2 |
368 | 405 | 6 | 145×165 | 16.350 | 15:1 | 56 | ≤203.4 | 89.6 | Electronic speed control | 89 | T2 |
401 | 441 | 6 | 145×165 | 16.350 | 15:1 | 56 | ≤205 | 98.2 | Electronic speed control | 89 | T2 |
441 | 485 | 6 | 145×165 | 16.350 | 15:1 | 56 | ≤208.4 | 110.1 | Electronic speed control | 89 | T2 |
520 | 572 | 6 | 152×180 | 19.598 | 14:1 | 55 | ≤221 | 137.2 | Electronic speed control / injection / electronic control unit pump | 130.5 | T2 |
561 | 616 | 6 | 152×180 | 19.598 | 14:1 | 55 | ≤225 | 151.2 | Electronic speed control / injection / electronic control unit pump | 130.5 | T2 |
680 | 748 | 6 | 200×210 | 39.584 | 14.5:1 | 160 | ≤218 | 191.7 | EFI | 195 | T2 |
715 | 787 | 6 | 200×210 | 39.584 | 14.5:1 | 160 | ≤214 | 183.2 | EFI | 195 | T2 |
18.5 | 20.4 | 4 | 87×103 | 2.45 | 19:01 | 9.5 | ≤212 | 4.8 | Electronically controlled VP pump | 8.2 | T3 |
18.5 | 20.4 | 4 | 87×103 | 2.450 | 19:1 | 9.5 | ≤212 | 4.8 | EFI | 8.2 | Euro 3 |
23 | 25.4 | 4 | 87×103 | 2.45 | 19:1 | 9.5 | ≤212 | 6.9 | Electronically controlled VP pump | 13.2 | T3 |
23 | 28 | 4 | 87×103 | 2.450 | 19:1 | 9.5 | ≤212 | 6.9 | EFI | 13.2 | Euro 3 |
28 | 30.8 | 4 | 87×103 | 2.450 | 19:1 | 9.5 | ≤212 | 7.2 | EFI | 15 | T3 |
28 | 30.8 | 4 | 87×103 | 2.450 | 19:1 | 9.5 | ≤212 | 7.2 | EFI | 15 | Euro 3 |
36 | 39.6 | 4 | 87×103 | 2.45 | 17.8:1 | 9.5 | ≤212 | 9 | Electronically controlled VP pump | 15 | T3 |
36.8 | 40.5 | 4 | 87×103 | 2.450 | 17.5:1 | 8 | ≤212 | 9 | EFI | 13.2 | Euro 3 |
53 | 59 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤215 | 13.7 | Electronically controlled high pressure common rail/jet | 27 | T3 |
60 | 66 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤215 | 15.4 | Electronically controlled high pressure common rail | 27 | T3 |
70 | 77 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤215 | 18 | Electronically controlled high pressure common rail | 27 | T3 |
80 | 88 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤210 | 20.1 | Electronically controlled high pressure common rail | 27 | T3 |
95 | 105 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤210 | 23.8 | Electronically controlled high pressure common rail | 27 | T3 |
103 | 113 | 4 | 108×115 | 4.214 | 17.5:1 | 13 | ≤210 | 27.1 | Electronically controlled high pressure common rail | 27 | T3 |
103 | 113 | 4 | 108×132 | 4.837 | 17.5:1 | 17 | ≤220 | 27.1 | Electronically controlled high pressure common rail | 27 | T3 |
110 | 121 | 4 | 108×132 | 4.837 | 17.5:1 | 17 | ≤213 | 28.3 | Electronically controlled high pressure common rail | 27 | T3 |
125 | 138 | 4 | 108×132 | 4.837 | 17.5:1 | 17 | ≤213 | 31.9 | Electronically controlled high pressure common rail | 27 | T3 |
125 | 138 | 4 | 108×132 | 4.837 | 17.5:1 | 24 | ≤218 | 32.6 | Electronically controlled high pressure common rail | 55 | T3 |
138 | 152 | 6 | 108×132 | 7.255 | 17.5:1 | 24 | ≤214 | 35.2 | Electronic speed control/spray/ | 55 | T3 |
155 | 171 | 6 | 108×132 | 7.255 | 17.5:1 | 24 | ≤214.3 | 39.8 | Electronic speed control/spray/ | 55 | T3 |
165 | 181 | 6 | 108×132 | 7.255 | 17.5:1 | 24 | ≤211.4 | 41.8 | Electronic speed control/spray/ | 55 | T3 |
185 | 203 | 6 | 108×132 | 7.255 | 17.5:1 | 24 | ≤212.6 | 47.1 | Electronic speed control/spray | 55 | T3 |
235 | 259 | 6 | 123×145 | 10.338 | 16.8:1 | 30 | ≤204.4 | 57.5 | Electronic speed control/spray | 65 | T3 |
281 | 309 | 6 | 123×145 | 10.338 | 16.8:1 | 30 | ≤203.1 | 68.3 | Electronic speed control/spray | 65 | T3 |
301 | 331 | 6 | 123×145 | 10.338 | 16.8:1 | 30 | ≤201.4 | 72.6 | Electronic speed control/spray | 65 | T3 |
335 | 368 | 6 | 129×155 | 12.160 | 16.5:1 | 32 | ≤203 | 83 | Electronic speed control/spray | 65 | T3 |
335 | 368 | 6 | 129×155 | 12.155 | 16.5:1 | 32 | ≤203 | 83 | Electronic speed control/spray | 65 | T3 |
356 | 382 | 6 | 129×155 | 12.160 | 16.5:1 | 32 | ≤207 | 87 | Electronic speed control / injection / electronic control high pressure common rail | 65 | T3 |
389 | 420 | 6 | 129×165 | 12.940 | 16.5:1 | 32 | ≤208 | 99 | Electronic speed control / injection / electronic control high pressure common rail | 65 | T3 |
441 | 485 | 6 | 145×165 | 16.350 | 15:1 | 56 | ≤215.5 | 113.8 | Electronic speed control / injection / electronic control unit pump | 88 | T3 |
520 | 572 | 6 | 152×180 | 19.598 | 14:1 | 55 | ≤220 | 137 | Electronic speed control / injection / electronic control unit pump | 130.5 | T3 |
561 | 616 | 6 | 152×180 | 19.598 | 14:1 | 55 | ≤214.9 | 144.9 | Electronic speed control / injection / electronic control unit pump | 130.5 | T3 |
605 | 665 | 6 | 152×180 | 19.598 | 14:1 | 55 | ≤213 | 154.3 | Electronically controlled unit pump | 148 | T3 |
680 | 748 | 6 | 200×210 | 39.584 | 14.5:1 | 180 | ≤220 | 166.4 | Electronically controlled unit pump | 90 | T3 |
668 | 735 | 6 | 152×180 | 19.598 | 14:1 | 55 | ≤208 | 166.4 | Electronically controlled high pressure common rail | 160 | T3 |
715 | 787 | 6 | 200×210 | 39.584 | 14.5:1 | 160 | ≤212.1 | 181.6 | Electronically controlled unit pump | 230 | T3 |
815 | 897 | 6 | 200×210 | 39.584 | 14.5:1 | 160 | ≤209 | 203.7 | Electronically controlled unit pump | 230 | T3 |
880 | 968 | 6 | 200×210 | 39.584 | 14.5:1 | 160 | ≤209 | 220.2 | Electronically controlled unit pump | 230 | T3 |
1016 | 1118 | 6 | 200×210 | 39.584 | 13.5:1 | 160 | ≤208.2 | 253.3 | Electronically controlled unit pump | 230 | T3 |
1100 | 1221 | 6 | 200×210 | 39.584 | 13.5:1 | 160 | 208.2 | 276.8 | Electronically controlled high pressure common rail | 230 | T3 |
1120 | 1230 | 12 | 200×210 | 79.170 | 13.5:1 | 340 | ≤210 | 281.7 | Electronically controlled unit pump | 554 | T3 |
1380 | 1520 | 12 | 200×210 | 79.170 | 13.5:1 | 340 | ≤205.3 | 339.2 | Electronically controlled unit pump | 608 | T3 |
1520 | 1670 | 12 | 200×210 | 79.170 | 13.5:1 | 340 | ≤203.6 | 370.6 | Electronically controlled unit pump | 626 | T3 |
1680 | 1850 | 12 | 200×210 | 79.170 | 13.5:1 | 340 | ≤207 | 319.9 | Electronically controlled unit pump | 651 | T3 |
1805 | 1985 | 12 | 200×210 | 79.170 | 13.5:1 | 370 | ≤204.4 | 441.9 | Electronically controlled unit pump | 676 | T3 |
2005 | 2206 | 16 | 200×210 | 105.558 | 13.5:1 | 430 | ≤206 | 493.9 | Electronically controlled unit pump | 623.6 | T3 |
2205 | 2426 | 16 | 200×210 | 105.558 | 13.5:1 | 430 | ≤206 | 543.2 | Electronically controlled unit pump | 623.6 | T3 |
2405 | 2640 | 16 | 200×210 | 105.558 | 13.5:1 | 430 | ≤206 | 597.5 | Electronically controlled unit pump | 623.6 | T3 |
8 |
